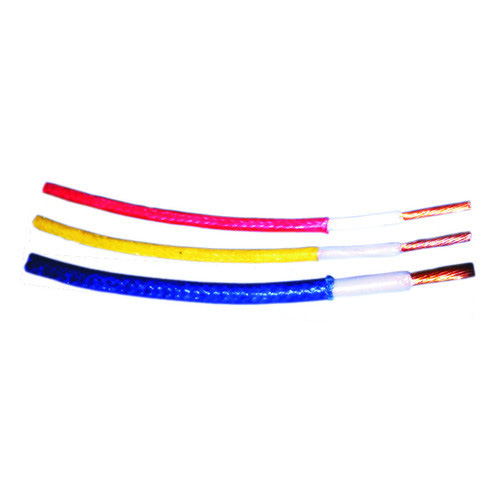

PTFE Insulated Wire

Tonk and Associates offer a wide range of PTFE Insulated Wire & Polytef Wire, which are precision engineered using sophisticated technology. Due to excellent chemical, electrical and thermal features, these Teflon insulated lead wire find application in various industries including telecommunication, thermal power station, navigation, flight simulators and many more.

Salient Features

• High dielectric strength and volume resistivity unaffected by thermal aging.
• Very low dissipation factor unaffected by exposure to humidity.
• Extremely low dielectric constant unaffected by temperature, frequency and humidity.
• Extremely high operating temperature.

Specifications :

Conductor	Nickel Plated Copper and Bare Copper
Primary Insulation	PTEE Wrap Insulation then Mylar
Secondary Insulation	Yarn Braded and Varnished
Properties	Resistance to Fire, Chemicals, Acids, Sunlight, Moisture and Corona.
Voltage Grade	250 V / 600V / 1000V or as per customer requirements.
Temperature	- 65°C to + 260°C
Colour	Red, Yellow, Blue, Green.
Size	0.5 mm² to 95 mm² or As per Customer
